Based in Southern California, R.C. Drilling, Inc. is family own and operated with over 30 years of experience. Specializing in hillside foundations, shoring, limited access, and geotechnical exploration.
Fully Bonded, Insured and Licensed (898874).
SERVICES
Foundation Drilling
Shoring
Soldier Piles
Geotechnical Exploration
Downhole Logging with Safety Equipment
Soils Sampling
Septic Pits

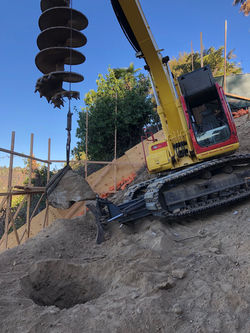

Hillside Drilling
Limited Access Drilling
Swimming Pool Foundations
EQUIPMENT
LIMITED ACCESS DRILL RIG
Minimum Required Clearance: (Mobilization)
Width: 42in.
Height: 6ft.
Length: 15ft.
Boom Heights: (Operating)
30ft. Kelly - 9ft.
50ft. Kelly - 15ft.
80ft. Kelly - 19ft.
Maximum Depth:
80ft. (w/o stems)
110ft. (w/ stems)
Maximum Slope:
2:1 (Mobility only)
Level area for drilling
Crane Weight: 6500-7000lbs.
Crowd: Hydraulic
Kelly Bar: Friction
Available Diameters: 12"-60"
TRIVE REMOTE CONTROL RIG
Width: 5'6"
Height: 10' mobilizing; 14' operating
Length: 12'
Drilling Depth: 55' with out stemsÂ
Drilling Diameter: 18"-72"
Crane weight: 13,500lbs-16,000lbs
Rotary Torque: 16,000 lbs
LODRIL
Width: 9'2"
Height: 9' Mobilization, 30' Operating
Drilling Depth: 60'-70' without stems
Drilling Diameter: 18"-72"
Weight: 55,000lbs
Rotary Torque: 22,000lbs
6 way blade, and rubber pads
